HENGYI KAIFENG · Activated carbon single machine processing equipment

Passed the ISO-9001 national quality system certification and obtained a number of national patents

Activated carbon production equipmentActivated carbon regeneration equipmentComplete set of activated carbon deep processing equipmentActivated carbon drying equipmentActivated carbon cooling equipmentActivated carbon packaging equipmentActivated carbon conveying and lifting equipmentActivated carbon single machine processing equipment
  • Compound counter roll crusher

Compound counter roll crusher

Scan and add WeChat
Wechat QR code
Widely used in large and medium-sized activated carbon production enterprises with high output equipment, can also be used in corn, sorghum, pepper, brewing, feed industry material grinding

icon圖標Tel:131-5373-6907(Mr. Wei)

icon圖標Address:Yishui County Economic Development Zone, Jining City, Shandong Province

Information details

對輥破碎機

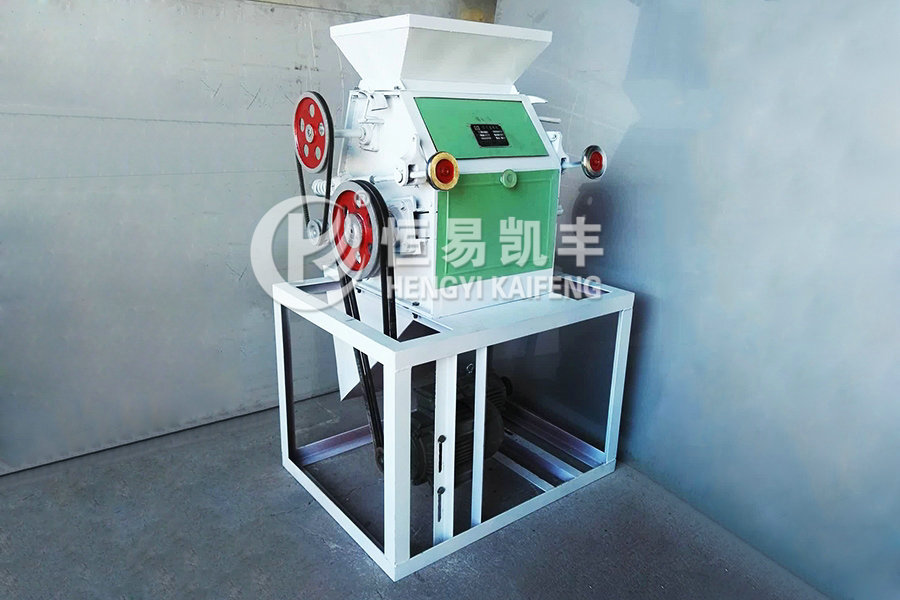

Compound counter roll crusher

Fmfq (s) compound mill is widely used in large and medium-sized activated carbon production enterprises with high output equipment, and can also be used in corn, sorghum, pepper, brewing, feed industry material grinding.

characteristic:

1. Compact structure, novel design, flexible and reliable operation, high production efficiency.

2. Cast iron base, manganese steel frame structure, smooth operation.

3. Synchronous belt drive, eccentric tension mode, reasonable structure, long service life.

4. Feeding system motor drive independently, flexible control, to ensure that the first feed after grinding

5. The roller bearing is disassembled hydraulically without hammering to ensure the matching accuracy of roller and bearing.


參數
parameter
型號 Model
FMFQ(s)50*2FMFQ(s)60*2FMFQ(s)80*2FMFQ(s)100*2
磨輥規格(mm)
Grinding roller spec
Φ250-500Φ250-600Φ250-800Φ250-1000
磨輥使用范圍(mm)
Scope of use
Φ250 ~ 500
快輥轉速(mm)
Quick roll Speed
550
磨輥安裝方式
Installation mode
水平 Horizontal
工作壓力(mpa)
Pressure
0.4-0.6
磨粉機耗氣量(m3/h)
Air consumption
0.06-0.08
喂料形式
Feeding method
雙輥 Double rollers
快、慢輥速比
Roller speed ratio
2:5:12:11:5:11:25:1
電機功率(Kw)
Motor power
5.5-155.5-18.57.5-2211-22
重量(Kg)
weight
2400270029003100
外形尺寸(mm)
Outline size
1400*1410*18501500*1410*18501700*1410*18501900*1410*1850
Compound counter roll crusher
Compound counter roll crusher 2021-6-25 Read 3346
